MY-103 Single Cup Button Type 80kV Automatic Transformer Insulating Oil BDV Tester

Name: MY103 Single Cup Button Type 80kV Automatic Transformer Insulating Oil BDV Tester
Brand: MINGYANG
Price: 1300 USD

Price : 1300USD

Packaging Details : carton

Display Mode : LCD Digital Display

Resolution : 0.1kV

Power Distortion Rate : ＜1%

Model Number : MY-103

Certification : RoHS, FCC, CE, ISO9001

Standard Electrode Gap : 2.5 mm

Supply Ability : 100/Month

Booster Capacity : 1.5 kVA

HS Code : 9030332000

Boost Speed : 0.5kV/s ~ 5.0kV/s

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Working Power Supply : AC 220V ±10%, 50Hz ±5%

Customized Support : OEM, ODM, Obm, Software Reengineering

Delivery Time : 1 week

Accuracy : 2%

Net Weight : 36 kg

Brand Name : MINGYANG

Application : Electrical Power Industry / Transformer Insulating Oil Test

Quiet Time : 900s

Overall Dimension : 730×410×390 mm / 430×350×370 mm

Output Voltage Range : AC 0~80kV

Interval Rest Time : 300s

Place of Origin : China Mainland

Type : Electric Portable Type

MOQ : 1

Display : LCD LED Screen

Mixing Time : 15s

Contact Now

MY‑103 Single‑cup Button‑operated 80kV Automatic Insulating Oil BDV Tester Transformer Oil Breakdown Voltage Test Equipment

Product Description

Portable Insulating Oil Breakdown Voltage Bdv Tester is mainly used for measure breakdown voltage of insulation oil accurately. It's preprogrammed with worldwide acceptable standards, with colorful large LCD display, available to store test result and built in thermal printer for on-site report.

Basic Info.

Model NO.

MY-103

Display

LED

Appliance

electric

Portable

Certification

RoHS, FCC, CE, ISO9001

Type

electric

Measurement Range

AC 0-80kv (0-40kv)C

Display Mode

LCD

Error

± (1% Rd + 1kv) (Rd Is The Reading Value)

Working Power Supply

AC 220V ± 10%, 50Hz ± 5%

Power

Electric

Customized Support

OEM, ODM, Obm, Software Reengineering

booster capacity

1.5 kVA

boost speed

2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s

Accuracy

resolution

0.1kV

Transport Package

Carton or Wooden Case

Specification

730×410×390(mm)

Trademark

MINGYANG

Origin

Hubei, China

HS Code

9030332000

Production Capacity

100

Product Parameters

Technical indicators
Booster capacity	1.5kVA
Boost speed	0.5kV/s-5.0kV/s (every 0.5 increments), ten levels can be selected, with an error of 0.2kV/s
Output voltage	0-80 kV,0-100kV (optional)
Voltage accuracy	(2% reading+2 words)
Power distortion rate	< 1%
Electrode gap	standard 2.5 mm
Test frequency	6 times (1-10 times optional)
Quiet time	900S (0-5900 S optional)
Interval rest time	300S (0-5900S optional)
Mixing time	15S (0-250S optional)
Display method	Large screen LCD Chinese character display
Communication interface	Standard 232 communication interface
Overall dimensions	430 mm long; 350 mm wide; 370 mm high
Instrument weight	36 kg
Usage conditions
Environmental temperature	0-40 ºC
Relative humidity	≤ 85%
Working power supply	AC 220V ± 20%
Power frequency	50 Hz ± 5 Hz
Power consumption	< 200 W

Instrument characteristics

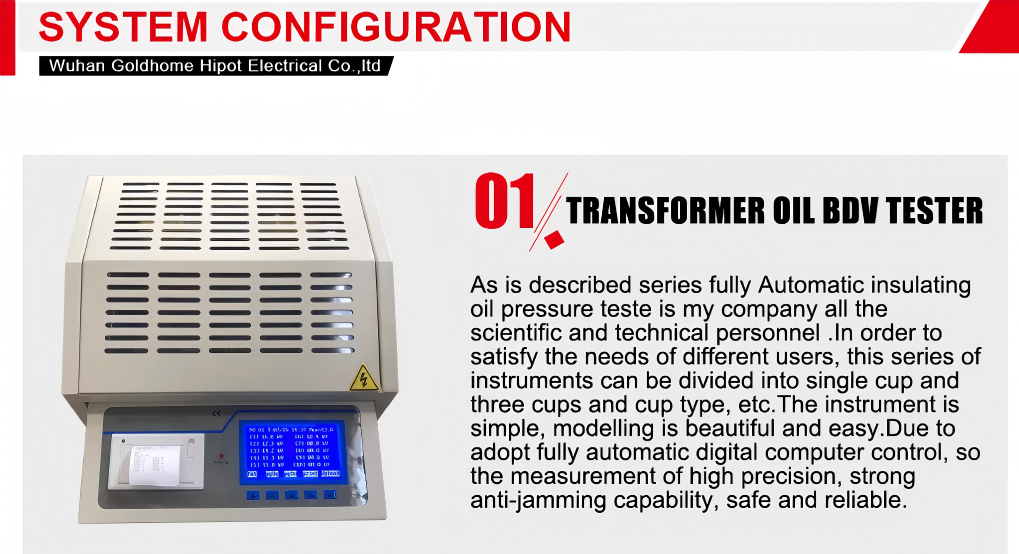

1. The instrument is controlled by a large capacity microcontroller, ensuring stable and reliable operation;
2. The instrument is equipped with a wide range watchdog circuit to prevent crashes;

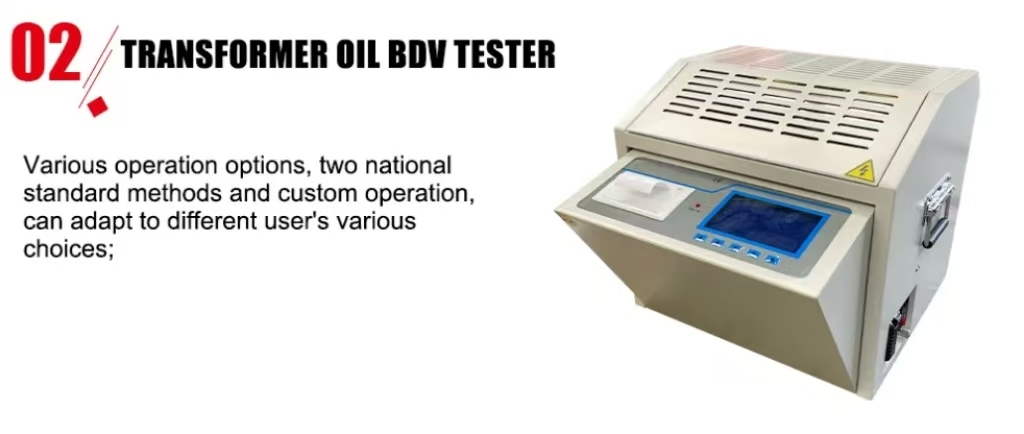

3. Multiple operation options, the instrument program has two national standard methods, GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156, and custom operations, which can adapt to various choices of different users;

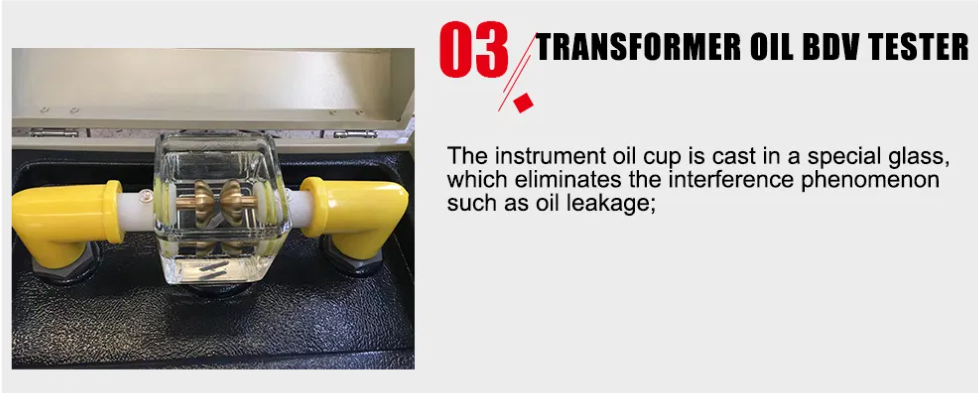

4. The instrument oil cup is cast with special glass in one go to prevent interference such as oil leakage;
5. The high-voltage sampling design of the instrument allows the test values to directly enter the A/D converter, avoiding errors caused in analog circuits and making the measurement results more accurate;
6. The instrument has the functions of overcurrent, overvoltage, short circuit and other protection, and has anti-interference capability and good Electromagnetic compatibility;
7. Portable structure, easy to move, and convenient for both indoor and outdoor use.
